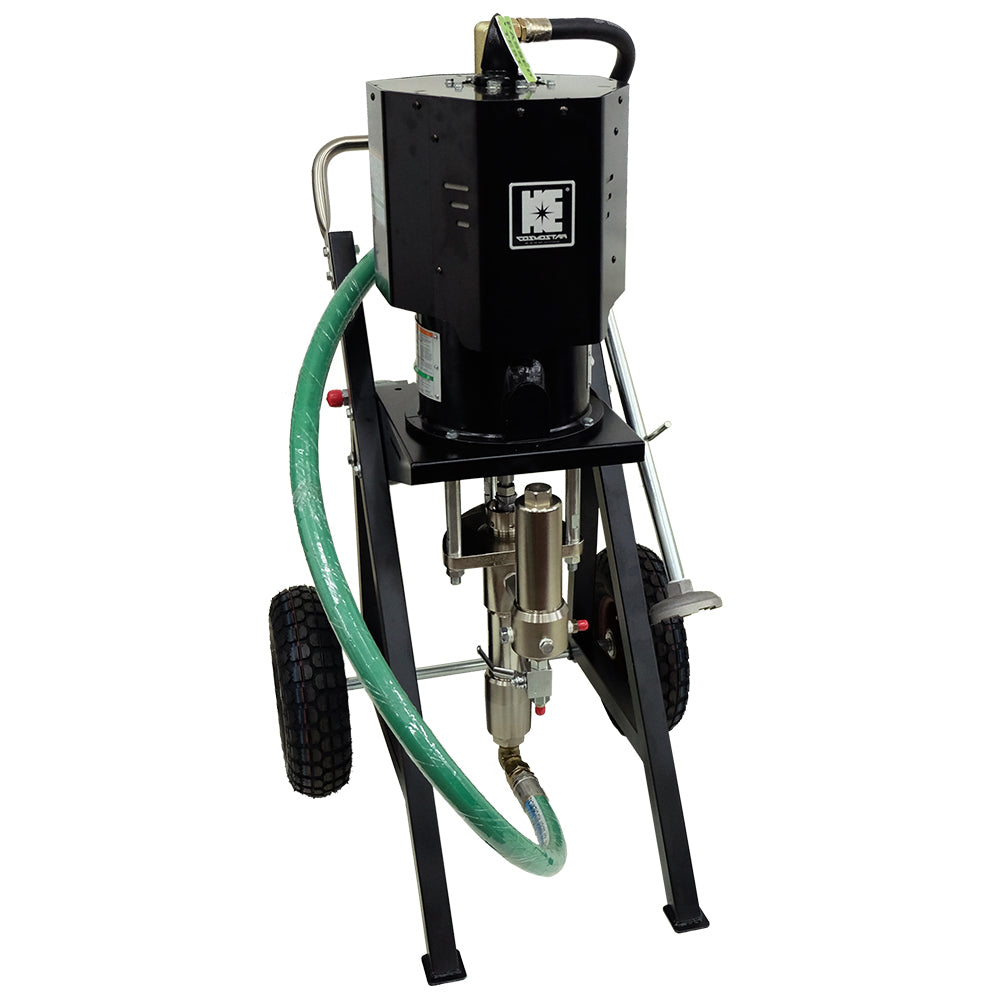

COSMOSTAR AX0110 ATLAS 45:1 Pneumatic Airless Sprayer

Cosmostar Atlas 10” AX0110 45:1 Pneumatic Airless Sprayers: Unmatched Power for Protective Coatings

Revolutionize Your Coating Applications

Cosmostar Atlas's pneumatic airless sprayers redefine the standards for power, output, and control in protective coating applications. Engineered to tackle the most challenging environments and coatings, these machines offer unprecedented output values, pressure ratios, and pumping capacities.

With different pressure ratios, we have a unit specifically tailored to meet your unique application needs.

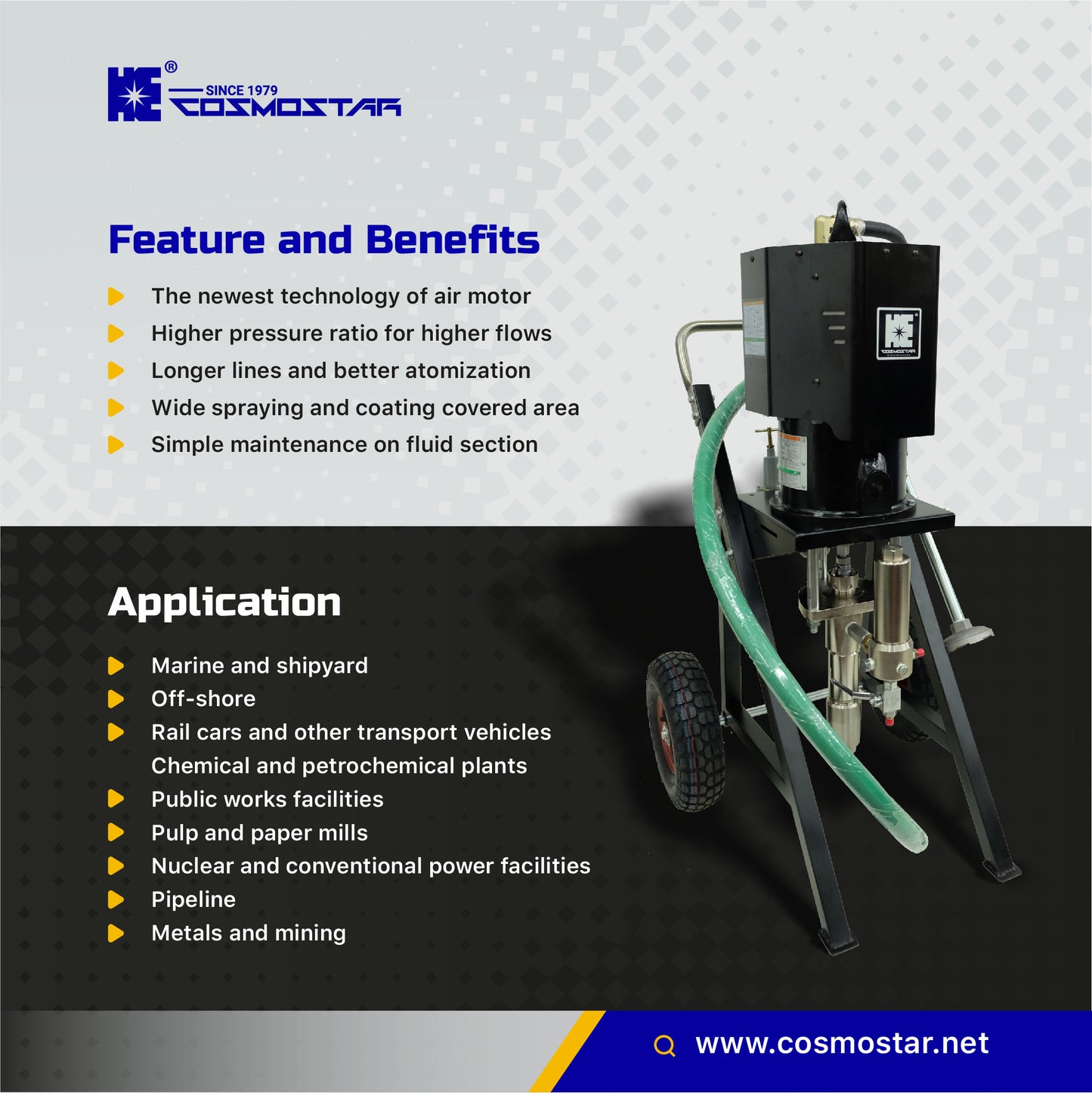

Advantages

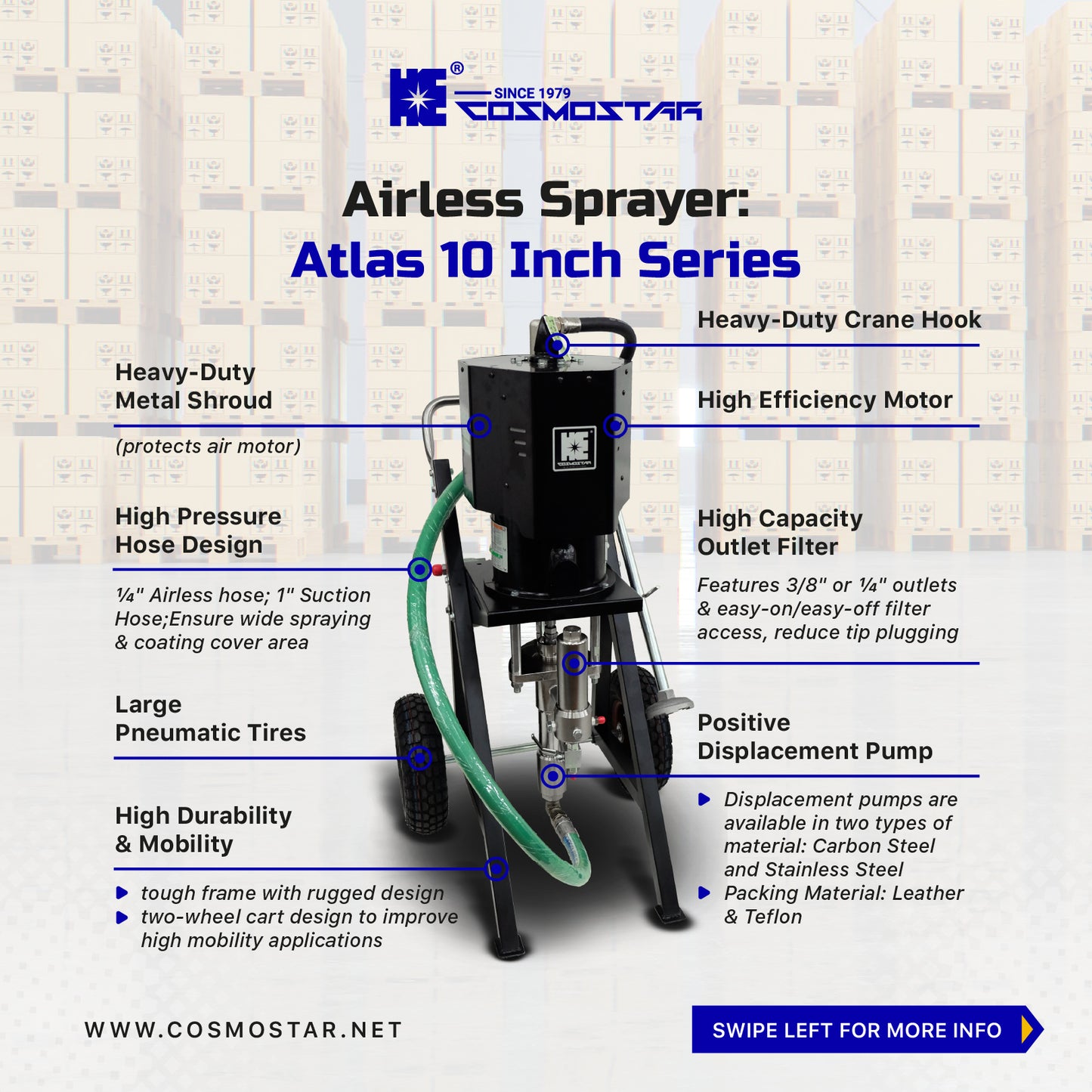

High-Volume, High-Pressure Pumps: Engineered for exceptional performance in waterproofing, fireproofing, and other protective coatings.

Exceptional Pump Longevity and Efficiency: Specifically crafted for heavy-duty spraying applications, our AtlasPro Pump Modules are built to withstand the most challenging conditions. While incorporating the time-tested V-Packing set sealing design, these modules ensure consistent and reliable performance to get every spraying job done effectively.

Applications: Ideal for handling corrosion control, waterproofing, cold applied roofing , fireproofing, and marine protective coatings.

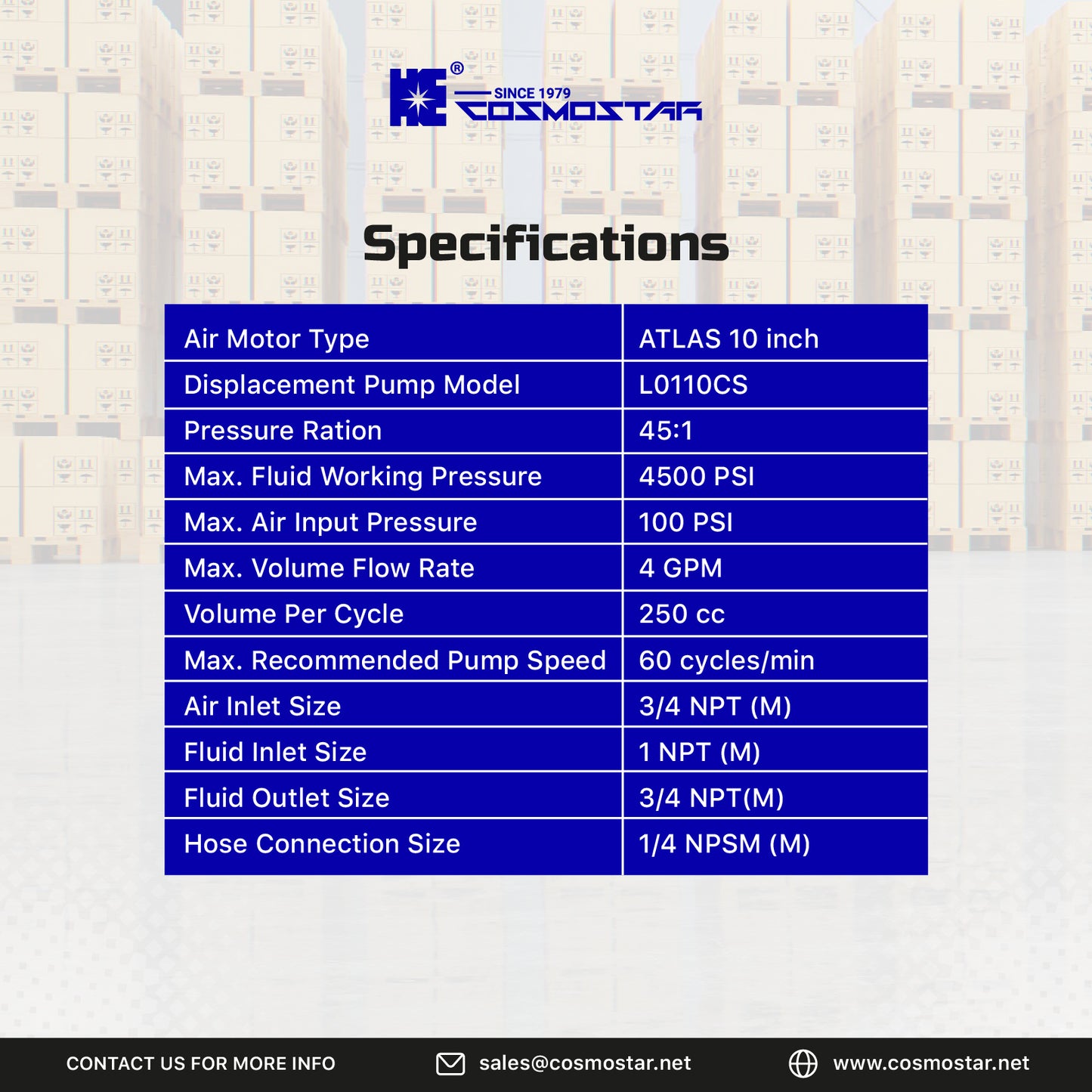

Specification:  Atlas Air Motor 10”, Displacement Pump 250 cc, R0928 High Pressure Filter, Pressure Ratio 45:1, Max. Fluid Working Pressure 4500 PSI, Max. Air Input Pressure 100 PSI, Max. Volume Flow Rate 4.0 GPM, Volume Per Cycle 250 cc, Max Recommended Pump Speed 60 CPM, Air Inlet Size 3/4 NPT(M), Fluid Inlet Size 1 NPT(M), Fluid Outlet Size 3/4 NPT(F), Hose Connection 1/4” NPSM (M)

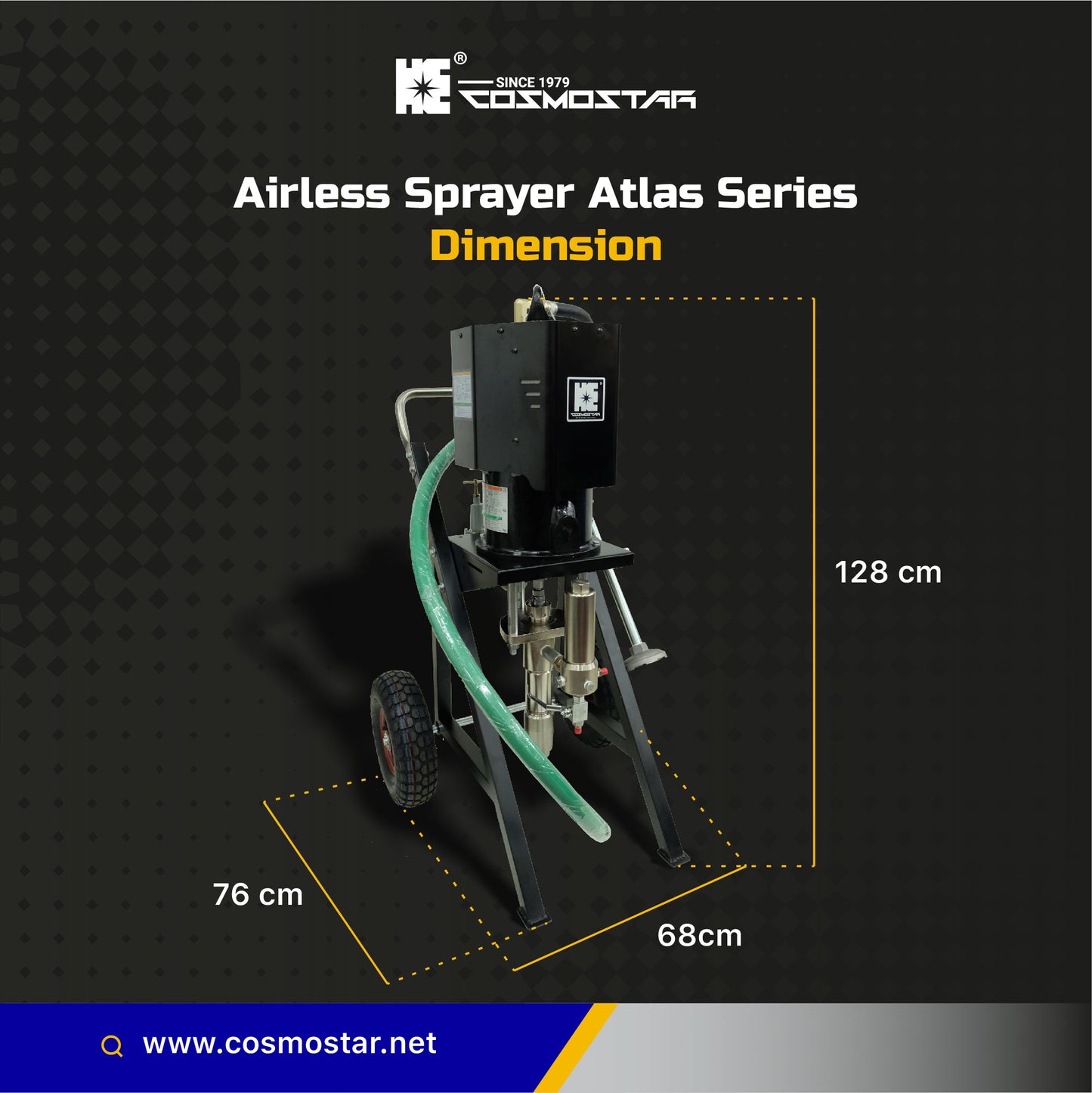

 Dimension: 30 x 27 x 50 inches
